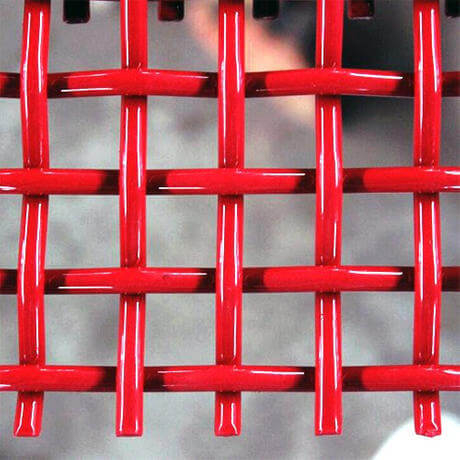

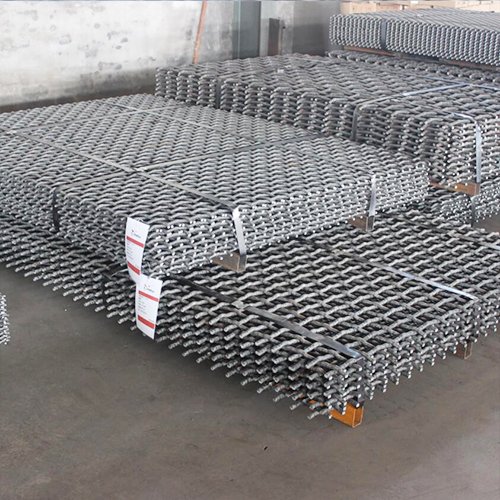

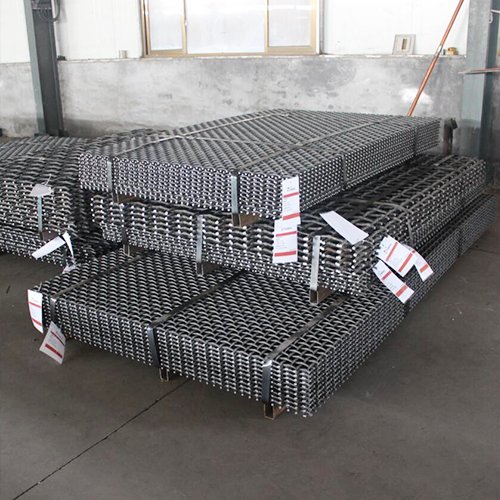

" Changte " Crimped woven wire mesh is made of high quality is a manufacturing in Ferrous & Non Ferrous Metal . It has various weaving method , such as the double crimped , flat top crimped , intermediate crimped and lock crimped . The crimped woven wire mesh has square opening and rectangle opening , which has different wire diameters and applications . The pre-crimped weaving method can assure the accurate open area and make the structure stability and smooth . The crimped woven wire mesh has various applications . The heavy duty crimped woven wire cloth can be used as vibrating screen in the mining , coal , crusher and other industries . The light crimped woven wire mesh with thinner wire diameter and small opening size can be used as Grilled Wiremesh , pig feeding , protective fences for the equipment and stairs .
Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications.
WOVEN WIRE CRIMPS
Conventional Double Crimp Woven Wire
Most common type of woven wire. It is used where the opening is relatively small in comparison to the wire diameter.
Lock Crimp Woven Wire
This woven wire type is used only in coarse specifications to maintain the accuracy of weave throughout screen life, where the opening is large with respect to wire diameter.
Inter Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).
Flat Top Woven Wire
Usually starts at 5/8" (15.875 mm) opening and larger. Provides long abrasive resistant life, since there are no projections on top to wear. Flat top woven wire offers the least resistance to flow and is very popular in certain architectural and structural applications where a smooth surface on one side is desirable.
Features
· Optimum bending strength
· High abrasion resistance

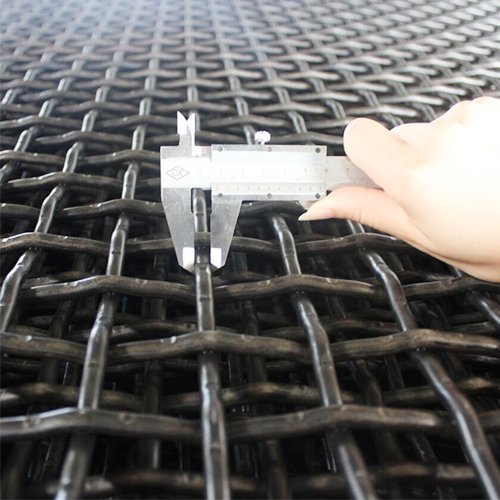

· Accurate dimensions
· Excellent stability
Applications
· Mining industry
· Coal factory
· Construction industry
· Food processing and meat industry
Used for
· Grid window
· Poultry protection
· Concrete reinforcement
· Building construction
Pre-crimped process
Using the precision machine , the intermediate crimped wire is pre-crimped by the rotary dies . The pre-crimped wire can assure the spacing of the wires . When the wires are woven together , the structure can ensure the wires will lock firmly together at the
" Changte " Crimped woven wire mesh is made of high quality is a manufacturing in Ferrous & Non Ferrous Metal . It has various weaving method , such as the double crimped , flat top crimped , intermediate crimped and lock crimped . The crimped woven wire mesh has square opening and rectangle opening , which has different wire diameters and applications . The pre-crimped weaving method can assure the accurate open area and make the structure stability and smooth . The crimped woven wire mesh has various applications . The heavy duty crimped woven wire cloth can be used as vibrating screen in the mining , coal , crusher and other industries . The light crimped woven wire mesh with thinner wire diameter and small opening size can be used as Grilled Wiremesh , pig feeding , protective fences for the equipment and stairs .
Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications.
WOVEN WIRE CRIMPS
Conventional Double Crimp Woven Wire
Most common type of woven wire. It is used where the opening is relatively small in comparison to the wire diameter.
Lock Crimp Woven Wire
This woven wire type is used only in coarse specifications to maintain the accuracy of weave throughout screen life, where the opening is large with respect to wire diameter.
Inter Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).
Flat Top Woven Wire
Usually starts at 5/8" (15.875 mm) opening and larger. Provides long abrasive resistant life, since there are no projections on top to wear. Flat top woven wire offers the least resistance to flow and is very popular in certain architectural and structural applications where a smooth surface on one side is desirable.
Features
· Optimum bending strength
· High abrasion resistance
· Accurate dimensions
· Excellent stability
Applications
· Mining industry
· Coal factory
· Construction industry
· Food processing and meat industry
Used for
· Grid window
· Poultry protection
· Concrete reinforcement
· Building construction
Pre-crimped process
Using the precision machine , the intermediate crimped wire is pre-crimped by the rotary dies . The pre-crimped wire can assure the spacing of the wires . When the wires are woven together , the structure can ensure the wires will lock firmly together at the
Aperture mm | Aperture Tolerance mm | Wire mm | Edge Length mm | Weight kg/m2 | ||
Minimum | Maximum | Minimum | Maximum | |||
101.60 | 98.55 | 104.65 | 12.70 | 12.70 | 50.80 | 17.92 |
88.90 | 86.23 | 91.57 | 12.70 | 12.70 | 44.45 | 20.16 |
76.20 | 73.91 | 78.49 | 12.70 | 12.70 | 38.10 | 23.04 |
63.50 | 61.60 | 65.41 | 12.70 | 12.70 | 31.75 | 26.88 |
63.50 | 61.60 | 65.41 | 9.19 | 9.19 | 31.75 | 14.76 |
57.15 | 55.44 | 58.86 | 9.19 | 9.19 | 28.58 | 16.17 |
50.80 | 49.28 | 52.32 | 12.70 | 12.70 | 25.40 | 32.26 |
50.80 | 49.28 | 52.32 | 11.10 | 11.10 | 25.40 | 25.28 |
50.80 | 49.28 | 52.32 | 9.19 | 11.10 | 25.40 | 17.88 |
50.80 | 49.28 | 52.32 | 7.92 | 7.92 | 25.40 | 13.57 |
44.45 | 43.12 | 45.78 | 9.19 | 9.19 | 22.23 | 20.00 |
44.45 | 43.12 | 45.78 | 7.92 | 7.92 | 22.23 | 15.21 |
41.28 | 40.04 | 42.51 | 9.19 | 9.19 | 20.64 | 21.25 |
41.28 | 40.04 | 42.51 | 7.92 | 7.92 | 20.64 | 16.19 |
38.10 | 36.69 | 39.24 | 9.19 | 9.19 | 19.05 | 22.68 |
38.10 | 36.69 | 39.24 | 7.92 | 7.92 | 19.05 | 17.31 |
38.10 | 36.69 | 39.24 | 7.19 | 7.19 | 19.05 | 14.49 |
31.75 | 30.80 | 32.70 | 9.19 | 9.19 | 15.88 | 26.20 |
31.75 | 30.80 | 32.70 | 7.92 | 7.92 | 15.88 | 20.08 |
31.75 | 30.80 | 32.70 | 7.19 | 7.19 | 15.88 | 16.85 |
28.58 | 27.72 | 29.43 | 7.92 | 7.92 | 14.29 | 21.83 |
28.58 | 27.72 | 29.43 | 7.19 | 7.19 | 14.29 | 18.35 |
25.40 | 24.64 | 26.16 | 7.92 | 7.92 | 12.70 | 23.91 |
25.40 | 24.64 | 26.16 | 7.19 | 7.19 | 12.70 | 20.14 |
19.05 | 18.48 | 19.62 | 5.72 | 5.72 | 9.53 | 16.78 |
15.88 | 15.40 | 16.35 | 4.50 | 4.50 | 7.94 | 12.62 |
11.00 | 10.67 | 11.33 | 4.00 | 4.00 | 5.50 | 13.55 |
10.00 | 9.70 | 10.03 | 4.00 | 4.00 | 5.00 | 14.51 |
8.00 | 7.76 | 8.24 | 4.00 | 4.00 | 4.00 | 16.93 |
6.35 | 6.16 | 6.54 | 2.67 | 2.67 | 3.18 | 10.04 |
6.30 | 6.11 | 6.49 | 2.50 | 2.50 | 3.15 | 9.93 |
4.00 | 3.88 | 4.12 | 2.00 | 2.00 | 2.00 | 9.31 |
3.00 | 2.91 | 3.09 | 2.00 | 2.00 | 2.00 | 11.17 |
2.00 | 1.94 | 2.06 | 1.50 | 1.50 | 1.50 | 8.99 |
Aperture mm | Aperture Tolerance mm | Wire mm | Edge Length mm | Weight kg/m2 | ||
Minimum | Maximum | Minimum | Maximum | |||
101.60 | 98.55 | 104.65 | 12.70 | 12.70 | 50.80 | 17.92 |
88.90 | 86.23 | 91.57 | 12.70 | 12.70 | 44.45 | 20.16 |
76.20 | 73.91 | 78.49 | 12.70 | 12.70 | 38.10 | 23.04 |
63.50 | 61.60 | 65.41 | 12.70 | 12.70 | 31.75 | 26.88 |
63.50 | 61.60 | 65.41 | 9.19 | 9.19 | 31.75 | 14.76 |
57.15 | 55.44 | 58.86 | 9.19 | 9.19 | 28.58 | 16.17 |
50.80 | 49.28 | 52.32 | 12.70 | 12.70 | 25.40 | 32.26 |
50.80 | 49.28 | 52.32 | 11.10 | 11.10 | 25.40 | 25.28 |
50.80 | 49.28 | 52.32 | 9.19 | 11.10 | 25.40 | 17.88 |
50.80 | 49.28 | 52.32 | 7.92 | 7.92 | 25.40 | 13.57 |
44.45 | 43.12 | 45.78 | 9.19 | 9.19 | 22.23 | 20.00 |
44.45 | 43.12 | 45.78 | 7.92 | 7.92 | 22.23 | 15.21 |
41.28 | 40.04 | 42.51 | 9.19 | 9.19 | 20.64 | 21.25 |
41.28 | 40.04 | 42.51 | 7.92 | 7.92 | 20.64 | 16.19 |
38.10 | 36.69 | 39.24 | 9.19 | 9.19 | 19.05 | 22.68 |
38.10 | 36.69 | 39.24 | 7.92 | 7.92 | 19.05 | 17.31 |
38.10 | 36.69 | 39.24 | 7.19 | 7.19 | 19.05 | 14.49 |
31.75 | 30.80 | 32.70 | 9.19 | 9.19 | 15.88 | 26.20 |
31.75 | 30.80 | 32.70 | 7.92 | 7.92 | 15.88 | 20.08 |
31.75 | 30.80 | 32.70 | 7.19 | 7.19 | 15.88 | 16.85 |
28.58 | 27.72 | 29.43 | 7.92 | 7.92 | 14.29 | 21.83 |
28.58 | 27.72 | 29.43 | 7.19 | 7.19 | 14.29 | 18.35 |
25.40 | 24.64 | 26.16 | 7.92 | 7.92 | 12.70 | 23.91 |
25.40 | 24.64 | 26.16 | 7.19 | 7.19 | 12.70 | 20.14 |
19.05 | 18.48 | 19.62 | 5.72 | 5.72 | 9.53 | 16.78 |
15.88 | 15.40 | 16.35 | 4.50 | 4.50 | 7.94 | 12.62 |
11.00 | 10.67 | 11.33 | 4.00 | 4.00 | 5.50 | 13.55 |
10.00 | 9.70 | 10.03 | 4.00 | 4.00 | 5.00 | 14.51 |
8.00 | 7.76 | 8.24 | 4.00 | 4.00 | 4.00 | 16.93 |
6.35 | 6.16 | 6.54 | 2.67 | 2.67 | 3.18 | 10.04 |
6.30 | 6.11 | 6.49 | 2.50 | 2.50 | 3.15 | 9.93 |
4.00 | 3.88 | 4.12 | 2.00 | 2.00 | 2.00 | 9.31 |
3.00 | 2.91 | 3.09 | 2.00 | 2.00 | 2.00 | 11.17 |
2.00 | 1.94 | 2.06 | 1.50 | 1.50 | 1.50 | 8.99 |
