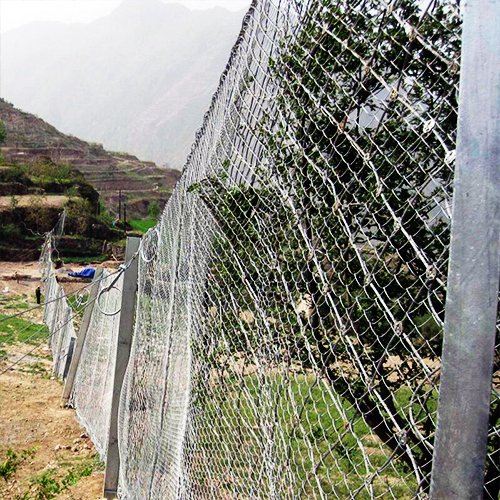

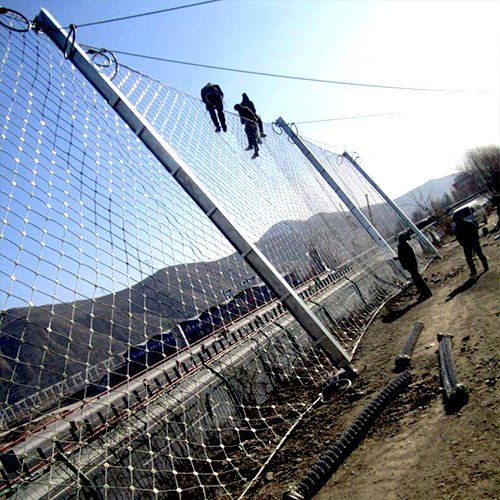

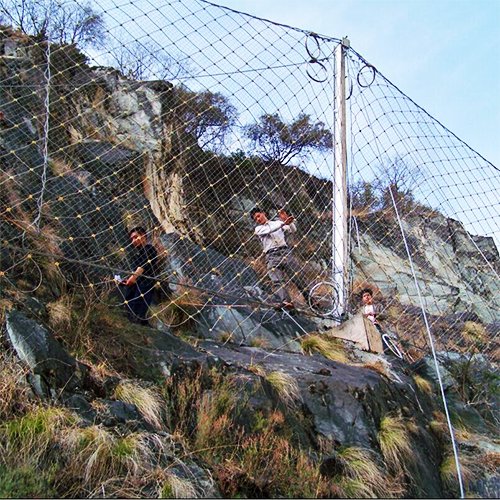

Diamond Wire Rope Net System also known as WICCO System NACCO System.
Consisit of
※ Diamond wire rope net
※ Grid net
※ Steel spiral rope anchor bolts
※ Anchor bearing plate
※ Boder and seaming rope
※ Net connection elements
Technical Specification
※ Diamond opening: 300 x 300 mm (+/-5%)
※Wire ropediameter: 8.0mm
※ Wire strength: ≥ 1770 MPa
※ Zinc mass: ≥ 90g /m2, according to GB/T 20118 or YB5004 standard
※ Normal net size: 4.0 x 4.0m,4.5m x 4.5m Grid Net
※ Wire diameter: 2.0mm or 2.2mm
※Hole size:50mmx50mm
※ Roll size:2.0m x 20m
Anchor/Bolt
※ Deformed steel bar diameter 25mm or 28mm
※ 2m-5mlong
※ Bearing plate size 320mm x 170/180mm
Border rope diameter 12mm or 16mm
Seaming rope diameter 8.0mm
Product Feature
※Simple components,ease of installation,high efficiency
※ An economic solution,with wide application
※ The net with many different specifications for many options
※ With good anti-corrosion performance and long lifespan
