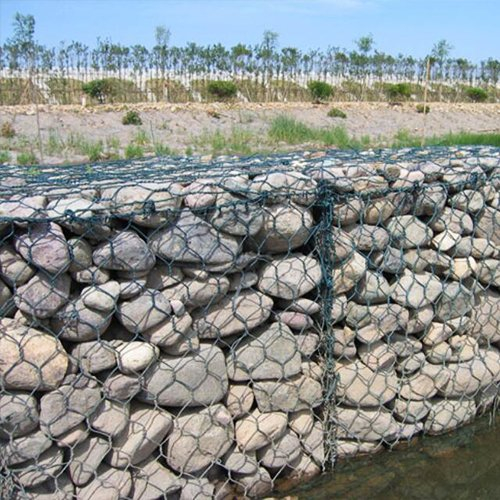

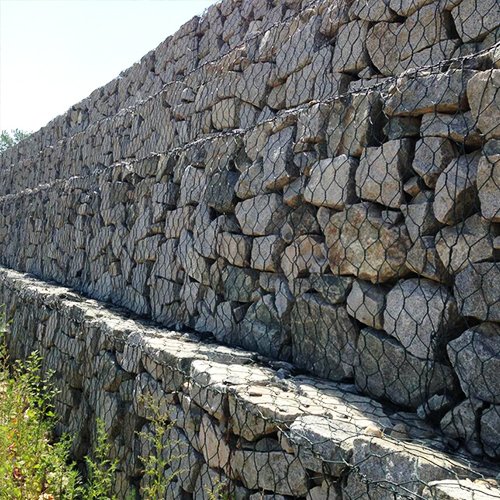

Woven Gabions are rectangular wire mesh baskets filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls for commercial, industrial and road projects. When gabions are filled with stone they become large, flexible building blocks from which a broad range of structures can be built. Gabions are also used for erosion control, bank stabilization, channel linings, and weirs.
The main advantages of gabions are their strength and flexibility. Their wire construction can tolerate differential settlement without fracture. Hydrostatic pressure does not build up behind the gabion units because of their permeable nature. This ability to combine drainage and retention functions makes gabions ideal structures for slope stabilization.

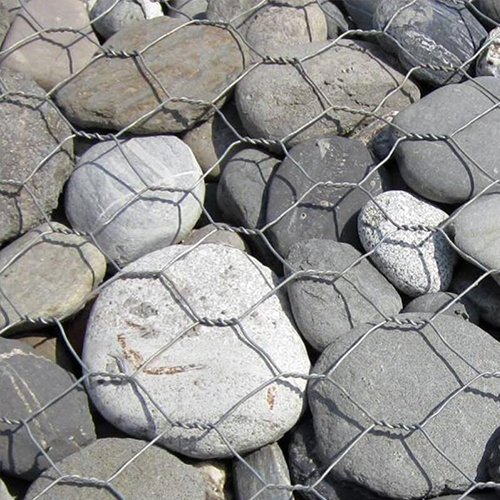

The strength of gabions comes from a double twisted hexagonal steel wire mesh which is reinforced by selvedges of heavier wire running along the edges and by transverse diaphragms. The double twisted wire will not unravel, even when the gabion is cut.

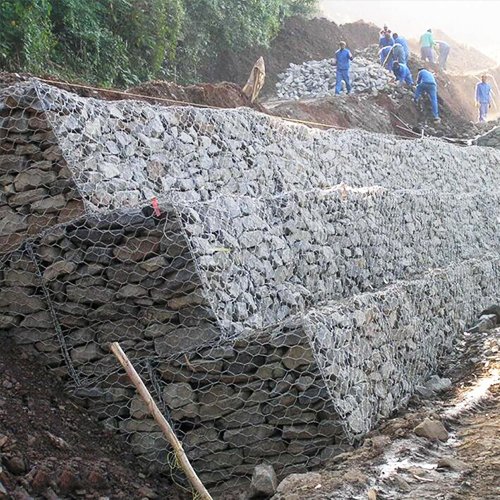

Our gabions are easily assembled, and require no specialized labor; nearby rock can be used for fill. Feicheng gabions are available with different levels of protective coating for durability.
Gabion Baskets Applications:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Bridge Protection
Water and soil protection
Coast protection
Seaport engineering
Strengthening structure of soil
Protection of road
Woven Gabions are rectangular wire mesh baskets filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls for commercial, industrial and road projects. When gabions are filled with stone they become large, flexible building blocks from which a broad range of structures can be built. Gabions are also used for erosion control, bank stabilization, channel linings, and weirs.
The main advantages of gabions are their strength and flexibility. Their wire construction can tolerate differential settlement without fracture. Hydrostatic pressure does not build up behind the gabion units because of their permeable nature. This ability to combine drainage and retention functions makes gabions ideal structures for slope stabilization.
The strength of gabions comes from a double twisted hexagonal steel wire mesh which is reinforced by selvedges of heavier wire running along the edges and by transverse diaphragms. The double twisted wire will not unravel, even when the gabion is cut.
Our gabions are easily assembled, and require no specialized labor; nearby rock can be used for fill. Feicheng gabions are available with different levels of protective coating for durability.
Gabion Baskets Applications:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Bridge Protection
Water and soil protection
Coast protection
Seaport engineering
Strengthening structure of soil
Protection of road
WIRE THICKNESS SPECS
Characteristics | Metallic coated | PVC coated | Metallic coated | PVC coated |
Mesh type | 8*10cm | 6*8cm | ||
Mesh openings | 83mm x 114mm | 83mm x 114mm | 64mm x 83mm | 64mm x 83mm |
Mesh wire | 2.7mm (0.106 in.) | 3.05mm( 0.120 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) |
Selvage wire | 3.4mm (0.134 in.) | 3.8mm (0.150 in.) | 2.7mm (0.105 in.) | 2.7mm (0.105 in.) |
Lacing wire | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm(0.087 in.) |

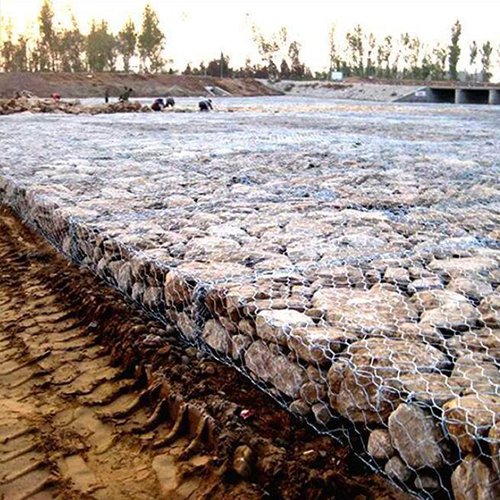

Size of gabion box and size of gabion mattress
Gabion Box | |||
Opening | Wire Diameter(Metal Wire) | Wire Diameter (PVC Coated)/ | Strands |
60X80 | f2.0-2.8 | f2.0/3.0-2.5/3.5 | 3 |
80X100 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3 |
80X120 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3 |
100X120 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3 |
100X150 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3 |
120X150 | f2.0-4.0 | f2.0/3.0-3.0/4.0 | 3 |
Size | Notes | Tolerance | |||
length(m) | width(m) | high(m) | (unit) | volume(m3) | +/-3% |
2.00 | 1.00 | 0.30 | 1 | 0.60 | |
3.00 | 1.00 | 0.30 | 2 | 0.90 | |
4.00 | 1.00 | 0.30 | 3 | 1.20 | +/-5% |
2.00 | 1.00 | 0.50 | 1 | 1.00 | |
3.00 | 1.00 | 0.50 | 2 | 1.50 | |
4.00 | 1.00 | 0.50 | 3 | 2.00 | |
1.00 | 1.00 | 1.00 | 0 | 1.00 | +/-5% |
1.50 | 1.00 | 1.00 | 0 | 1.50 | |
2.00 | 1.00 | 1.00 | 1 | 2.00 | |
3.00 | 1.00 | 1.00 | 2 | 3.00 | |
4.00 | 1.00 | 1.00 | 3 | 4.00 | |
WIRE THICKNESS SPECS
Characteristics | Metallic coated | PVC coated | Metallic coated | PVC coated |
Mesh type | 8*10cm | 6*8cm | ||
Mesh openings | 83mm x 114mm | 83mm x 114mm | 64mm x 83mm | 64mm x 83mm |
Mesh wire | 2.7mm (0.106 in.) | 3.05mm( 0.120 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) |
Selvage wire | 3.4mm (0.134 in.) | 3.8mm (0.150 in.) | 2.7mm (0.105 in.) | 2.7mm (0.105 in.) |
Lacing wire | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm(0.087 in.) |
Size of gabion box and size of gabion mattress
Gabion Box | |||
Opening | Wire Diameter(Metal Wire) | Wire Diameter (PVC Coated)/ | Strands |
60X80 | f2.0-2.8 | f2.0/3.0-2.5/3.5 | 3 |
80X100 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3 |
80X120 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3 |
100X120 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3 |
100X150 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3 |
120X150 | f2.0-4.0 | f2.0/3.0-3.0/4.0 | 3 |
Size | Notes | Tolerance | |||
length(m) | width(m) | high(m) | (unit) | volume(m3) | +/-3% |
2.00 | 1.00 | 0.30 | 1 | 0.60 | |
3.00 | 1.00 | 0.30 | 2 | 0.90 | |
4.00 | 1.00 | 0.30 | 3 | 1.20 | +/-5% |
2.00 | 1.00 | 0.50 | 1 | 1.00 | |
3.00 | 1.00 | 0.50 | 2 | 1.50 | |
4.00 | 1.00 | 0.50 | 3 | 2.00 | |
1.00 | 1.00 | 1.00 | 0 | 1.00 | +/-5% |
1.50 | 1.00 | 1.00 | 0 | 1.50 | |
2.00 | 1.00 | 1.00 | 1 | 2.00 | |
3.00 | 1.00 | 1.00 | 2 | 3.00 | |
4.00 | 1.00 | 1.00 | 3 | 4.00 | |
