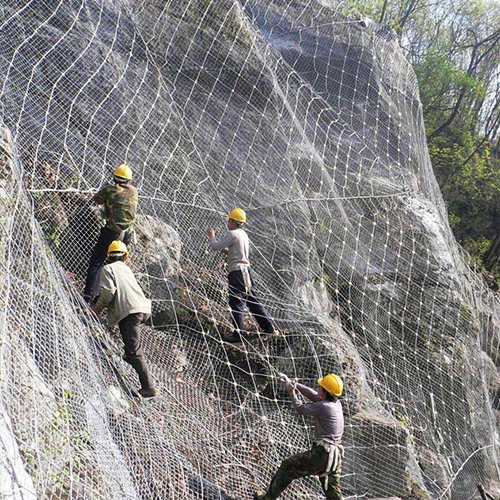

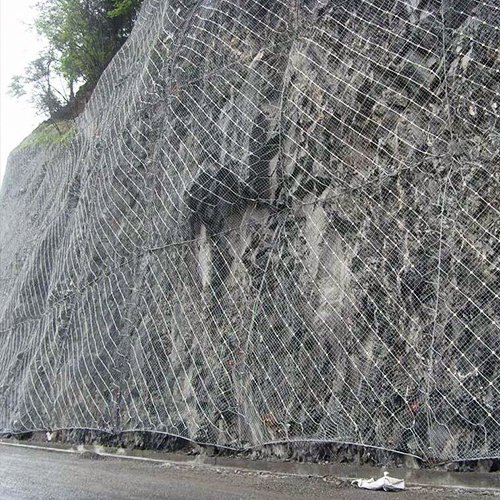

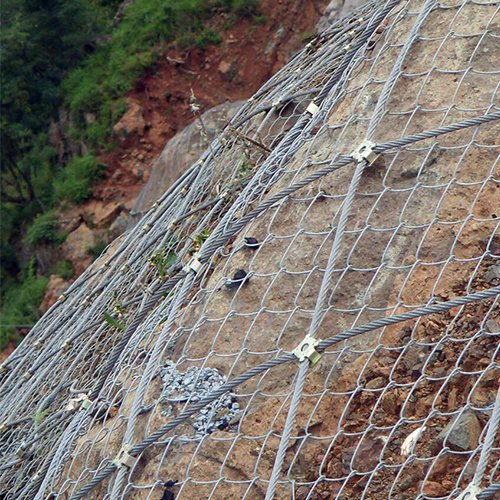

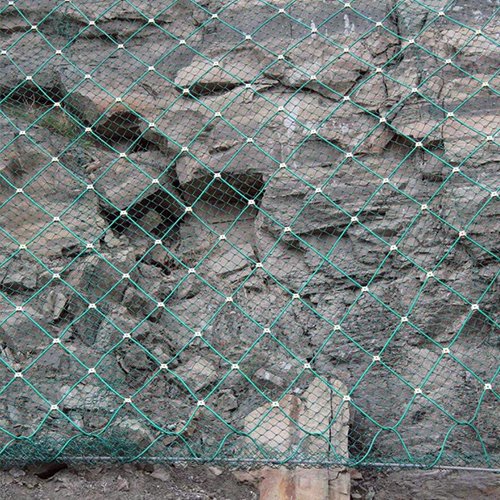

SNS Active Protection System
SNS can be divided into active protection system and passive protection system. Made with steel wire ropes as major components, the covering protection type is called active system while the holding protection type is called passive system. So, SNS has two basic types of flexible security system technology and products to prevent geological disasters of various slopes and avalanche slope, bank erosion, blasting stone fly, falling objects and other hazards.
SNS (safety netting system) active protection is an open system to reinforce slopes. Considering it's merits-easy to install, high efficiency, low cost and artistic effect on slopes, it has been widely used in many fields of domestic industries, such as hydropower station, civil transportation and mining engineering. The SNS flexible protection mesh overcomes the inconvenience of traditional ways to reinforce slopes, improves the effect of the vegetation, and becomes a developing method with ecological and social benefits.
This product is widely used in the railway, highway, the mine, the water and electricity project, the tourist site, the river course and in the municipal engineering. SNS is one kind of new technical product completely changed the traditional ideas of slope protection. This product has incomparable advantages compared with other similar products. When works as products withstanding huge impulse, it can avoid the damage may caused by the partial centralism stress, with the lengthened response time; increased mesh point surface; at the same time, it receives the partial stress with the whole. The SNS product is suitable for any complex terrain, while maintaining the primitive land form. SNS product has mesh opening allowing good vision, convenient for planting trees and grasses and good for the environmental protection. It is simple for installation to save time. The product has standard components that do not need site further processing. Simple machine, less labor and a small quantity of earth and stone foundation are needed for the building block system installation quickly and easily. It does not need to excavate massively, does not need the massive material, does not disturb the neighboring buildings normal operation and other construction function, hence to avoid the heavy economic loss caused by "the disturbance".
SNS Active Protection System
SNS can be divided into active protection system and passive protection system. Made with steel wire ropes as major components, the covering protection type is called active system while the holding protection type is called passive system. So, SNS has two basic types of flexible security system technology and products to prevent geological disasters of various slopes and avalanche slope, bank erosion, blasting stone fly, falling objects and other hazards.
SNS (safety netting system) active protection is an open system to reinforce slopes. Considering it's merits-easy to install, high efficiency, low cost and artistic effect on slopes, it has been widely used in many fields of domestic industries, such as hydropower station, civil transportation and mining engineering. The SNS flexible protection mesh overcomes the inconvenience of traditional ways to reinforce slopes, improves the effect of the vegetation, and becomes a developing method with ecological and social benefits.
This product is widely used in the railway, highway, the mine, the water and electricity project, the tourist site, the river course and in the municipal engineering. SNS is one kind of new technical product completely changed the traditional ideas of slope protection. This product has incomparable advantages compared with other similar products. When works as products withstanding huge impulse, it can avoid the damage may caused by the partial centralism stress, with the lengthened response time; increased mesh point surface; at the same time, it receives the partial stress with the whole. The SNS product is suitable for any complex terrain, while maintaining the primitive land form. SNS product has mesh opening allowing good vision, convenient for planting trees and grasses and good for the environmental protection. It is simple for installation to save time. The product has standard components that do not need site further processing. Simple machine, less labor and a small quantity of earth and stone foundation are needed for the building block system installation quickly and easily. It does not need to excavate massively, does not need the massive material, does not disturb the neighboring buildings normal operation and other construction function, hence to avoid the heavy economic loss caused by "the disturbance".
Stainless Steel Slope Protection Network (China Manufacture) | |||||
Description | Model | Net Code No. | Support ropes | Sewing ropes | Remarks |
Single layer | GAR1 | DO/08/300 | Φ16 border (or upper border) steel spiral rope anchor bolt + Φ16 support rope | Φ8 | Single layer steel spiral rope net. Length of anchor bolt: 2~3m. |
GAR2 | DO/08/300 | Φ16 system steel spiral rope anchor bolt + Φ16 horizontal support rope | Φ8 | Single layer steel spiral rope net. Concave orifice + pretension. Length of anchor bolt: 2~3m. | |
Double layers | GPS1 | DO/08/300+ | Φ16 border (or upper border) steel spiral rope anchor bolt + Φ16 support rope | Φ8 | Double layers (steel spiral rope net + steel wire mesh), |
SO/2.2/2.25×10.2 | |||||
GPS2 | DO/08/300+ | Φ16 system steel spiral rope anchor bolt + Φ16 horizontal support rope | Φ8 | Double layers (steel spiral rope net + steel wire mesh), | |
SO/2.2/2.25×10.2 | |||||
Single layer steel wire mesh system | GER1 | SO/2.2/2.25×10.2 | Φ16 border (or upper border) steel spiral rope anchor bolt +Φ16 upper border support rope + Φ12 lower border support rope | Sewing by wire with diameter not less than 2.2mm. | Single layer of steel wire mesh. Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN |
GER2 | SO/2.2/2.25×10.2 | Φ16 system steel spiral rope anchor bolt + Φ12 horizontal support rope | Sewing by wire with diameter not less than 2.2mm. | Single layer of steel wire mesh. Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN | |
Single layer high strength steel wire mesh system | GTC-65A | TC-65 (TECCO) | Prestressed steel bar anchor bolt + concave orifice (select the border support rope and steel spiral rope anchor bolt if necessary) | Φ8 | Single layer of high strength steel wire mesh system with 100 years of anti-corrosion lifespan requirements. Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN |
GTC-65B | TC-65 (TECCO) | Φ16 border (or upper border) steel spiral rope anchor bolt + Φ16 support rope | Φ8 | Single layer of high strength steel wire mesh system with 100 years of anti-corrosion lifespan requirements. Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN |
